55LV75A
ข้อมูลสินค้า
-
รหัสสินค้า
55LV75A
-
เข้าชม
9,009 ครั้ง
ลิงค์
http://www.lg.com/global/business/information-display/digital-signage/lg-55LV75A
-
แก้ไขล่าสุดเมื่อ
25/04/2017 09:55
ดาวน์โหลดไฟล์ PDF
-
รายละเอียดสินค้า
Key Features
- Direct LED
- Brightness : 500cd/m2
- Bezel : 3.5mm (B-to-B)
- DP1.2 Daisy Chain
- 24/7 Operation
จอเป็นชนิดเปิดใช้งาน 24 ชั่วโมง สัปดาห์ละ 7วัน หรือเปิดตลอดเวลา รับประกัน 3 ปี
- Landscape and Portrait Mode
DISPLAY
Super Narrow Bezel
47" super narrow bezel 4.9mm and 55" super narrow bezel 3.5mm video wall displays create visually stunning digital wall that is easily installed, maintained and managed.
DISPLAY

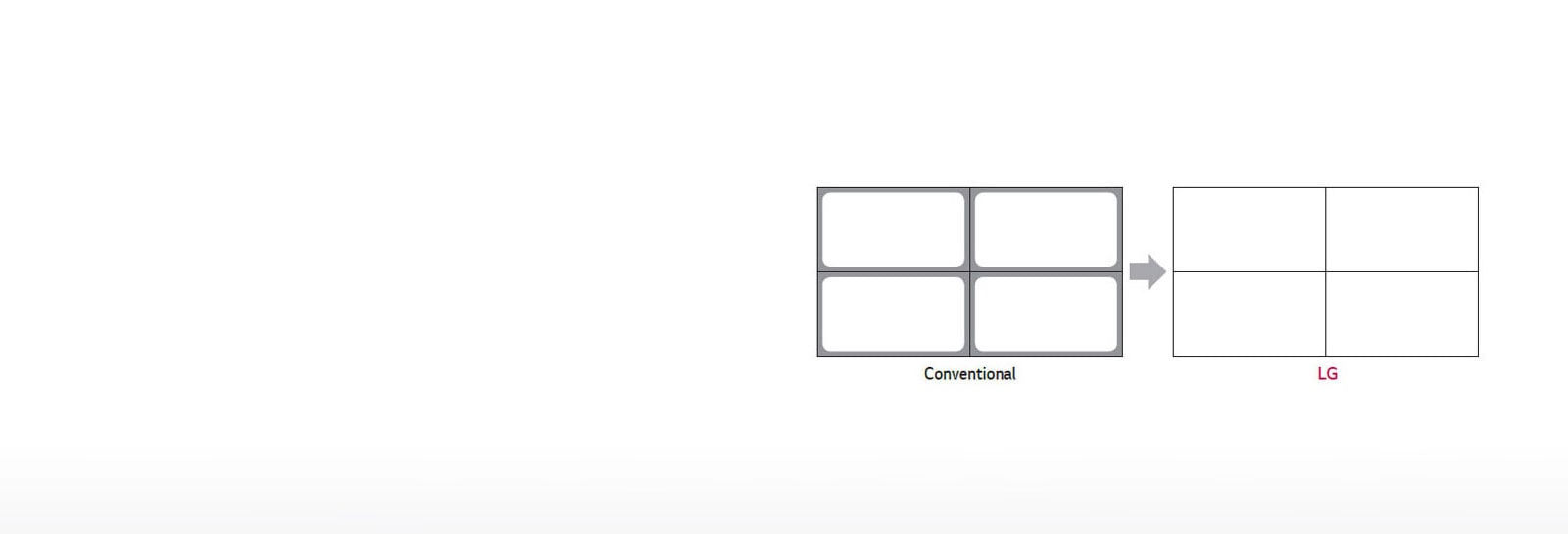

Higher Brightness Uniformity
Brightness uniformity 90 ensures high-quality image delivered across displays.
DISPLAY

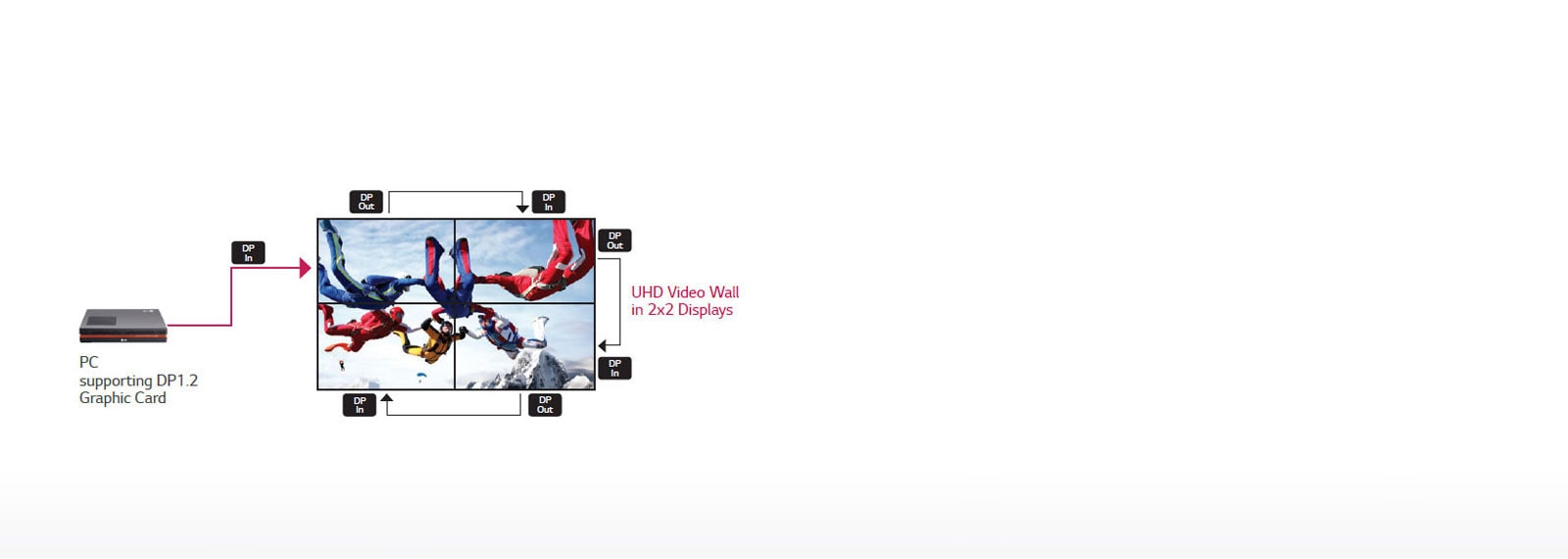

Evolved Daisy-Chain Performance
DisplayPort1.2 connectors enable UHD content playback on 4K Video
Wall in 2x2 displays. (available on 55LV75A-7B.APD/55LV77A-7B.APD)
DISPLAY

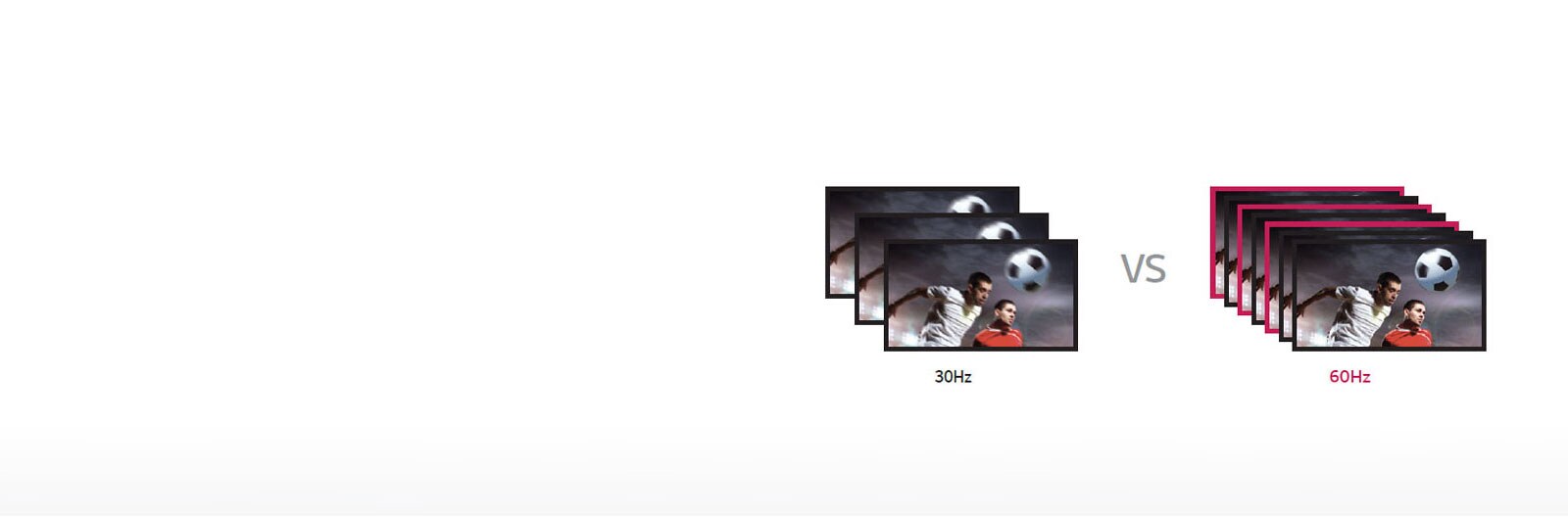

Vivid Imagery Viewing
TruMotion™ 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image details.
SOFTWARE

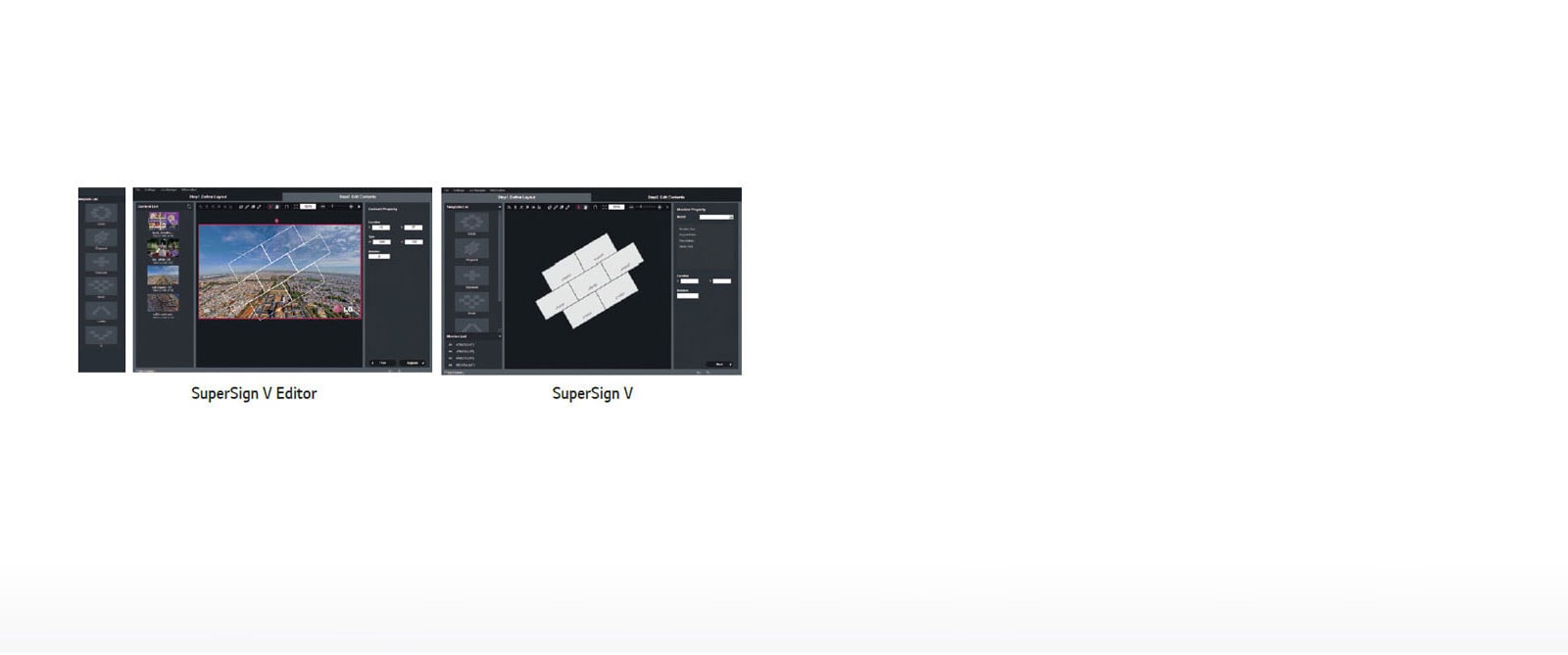

SuperSign V for Dynamic Layout
- Use given templates to configure video wall layout easily
- Rotate, cut and edit content according to a defined layout
- Flexible content editing in various layouts is viable
- Scheduled-based content playback based on time and day
- Distribute content to media players as well
SOFTWARE

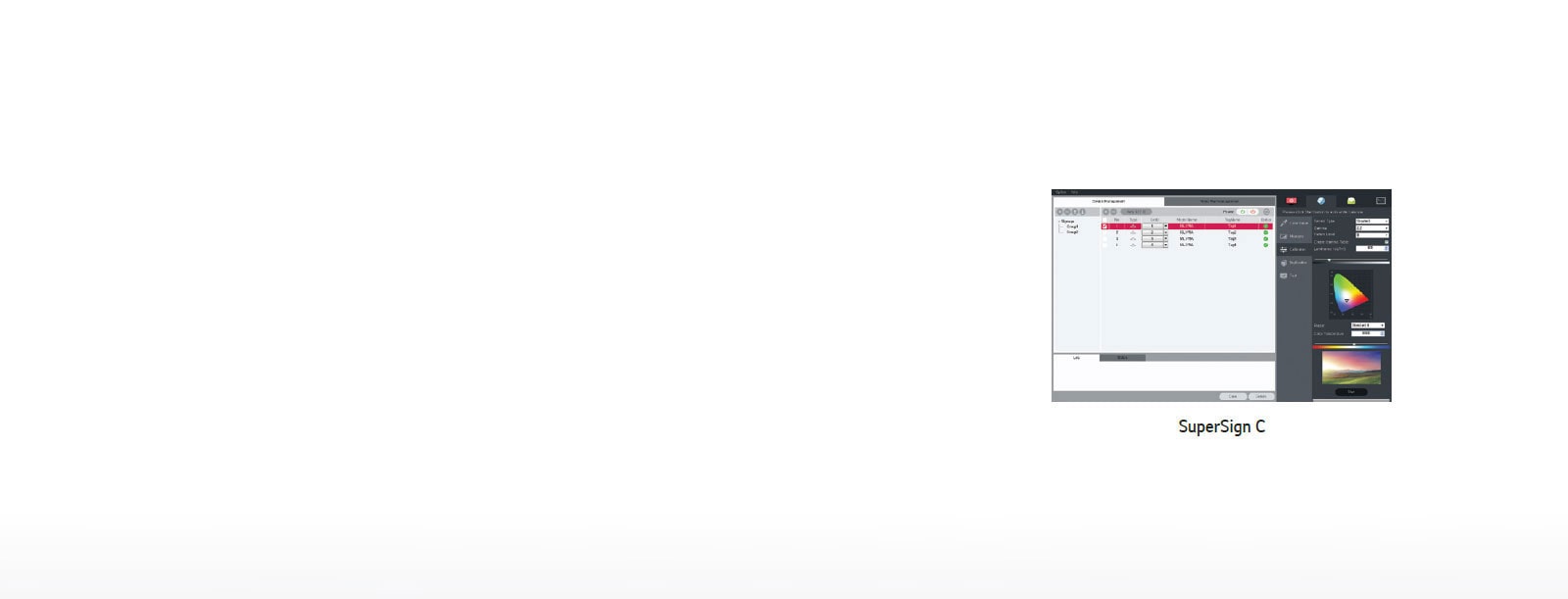

Free SuperSign C for Advanced Color Adjustment
- Intuitive GUI in SuperSign C S/W allows to measure and adjust color
and brightness instantly on display
- Automatic white balancing of a video-wall display using a sensor
SOFTWARE

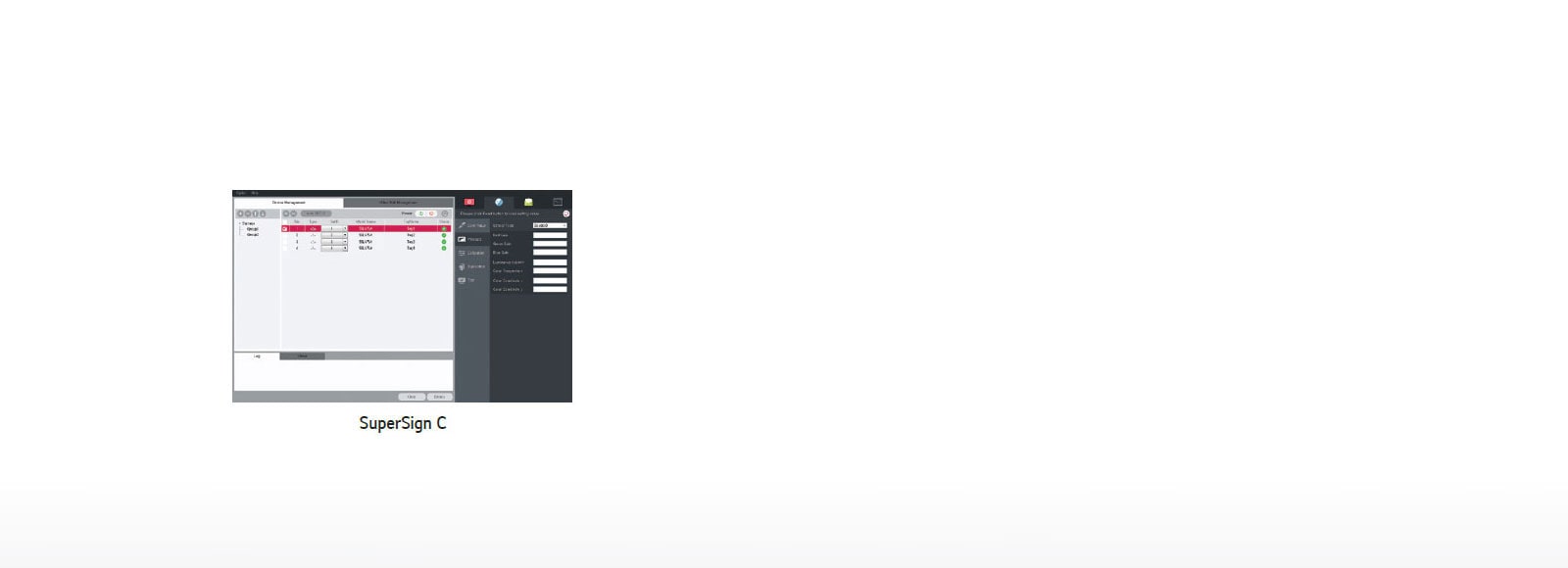

Free SuperSign C for Remote Monitor and Control
Intuitive GUI-based Remote Monitoring & Control via the networks and
RS232 connection feature in SuperSign C S/W.Panel Screen Size 55" (54.64" measured diagonal) Resolution 1,920 x 1,080 (FHD) Brightness 500cd/m² Connectivity - Intput Digital DVI-D (1), HDMI (2), Display Port (1) with HDCP for input Analog RGB (1), Shared Component, AV (1) Audio PC Audio In (1) External Control RS232C (1), RJ45 (1), IR Receiver (1) USB USB (1) Connectivity - Output Digital Display Port(1) Audio Audio Out(1) External Control RS232C(1) Physical Specification Bezel Width 2.25mm (left/top), 1.25mm (right/bottom) Monitor Dimension (W x H x D) 1213.4 x 684.2 x 88.5 mm Weight (Head) 23.0kg VESA™ Standard Mount Interface 600 x 400mm Environment Conditions Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 % Power Power Supply 100-240V~, 50/60Hz Power Type Built-In Power Power Consumption Typ. 160W Smart Energy Saving 130 W DPM 0.7 W Power off 0.5 W Standard (Certification) Safety UL / cUL / CB / TUV / KC EMC FCC Class "B" / CE / KCC ErP / Energy Star NA / Yes (Energy Star 6.0) Media Player Compatibility External Media player Attatchable Yes Software Compatibility SuperSign-w lite Yes SuperSign-c Yes Accessory Basic Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw Optional WM-L640V(Landscape), WM-P640V(Portrait) Business Resources
