Key Features
- webOS 2.0
- Quad Core SoC built-in
- Brightness : 700cd/m²
- Bezel : Less than 2.0mm (B-to-B)
- SoC Based Sync-Playback
- Image Gap Reduction
จอเป็นชนิดเปิดใช้งาน 24 ชั่วโมง สัปดาห์ละ 7วัน หรือเปิดตลอดเวลา รับประกัน 3 ปี

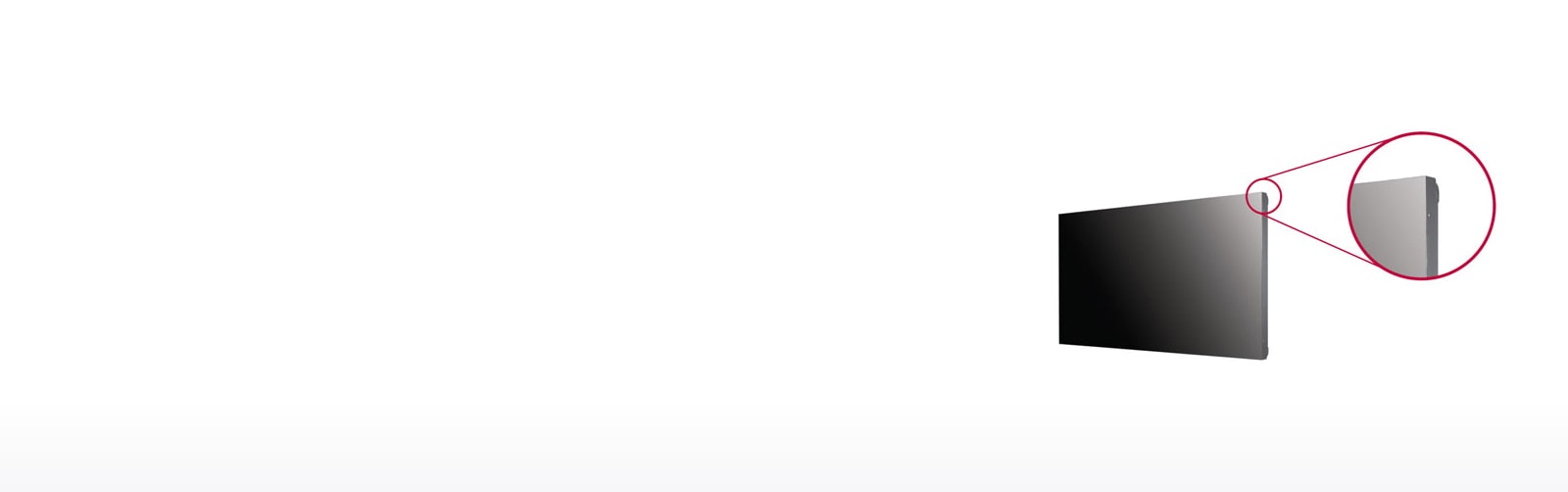

Narrowest Bezel
Borderless design with its 0.9mm even panel bezel*
enables immersive and seamless viewing experiences
on assembled video wall screens.

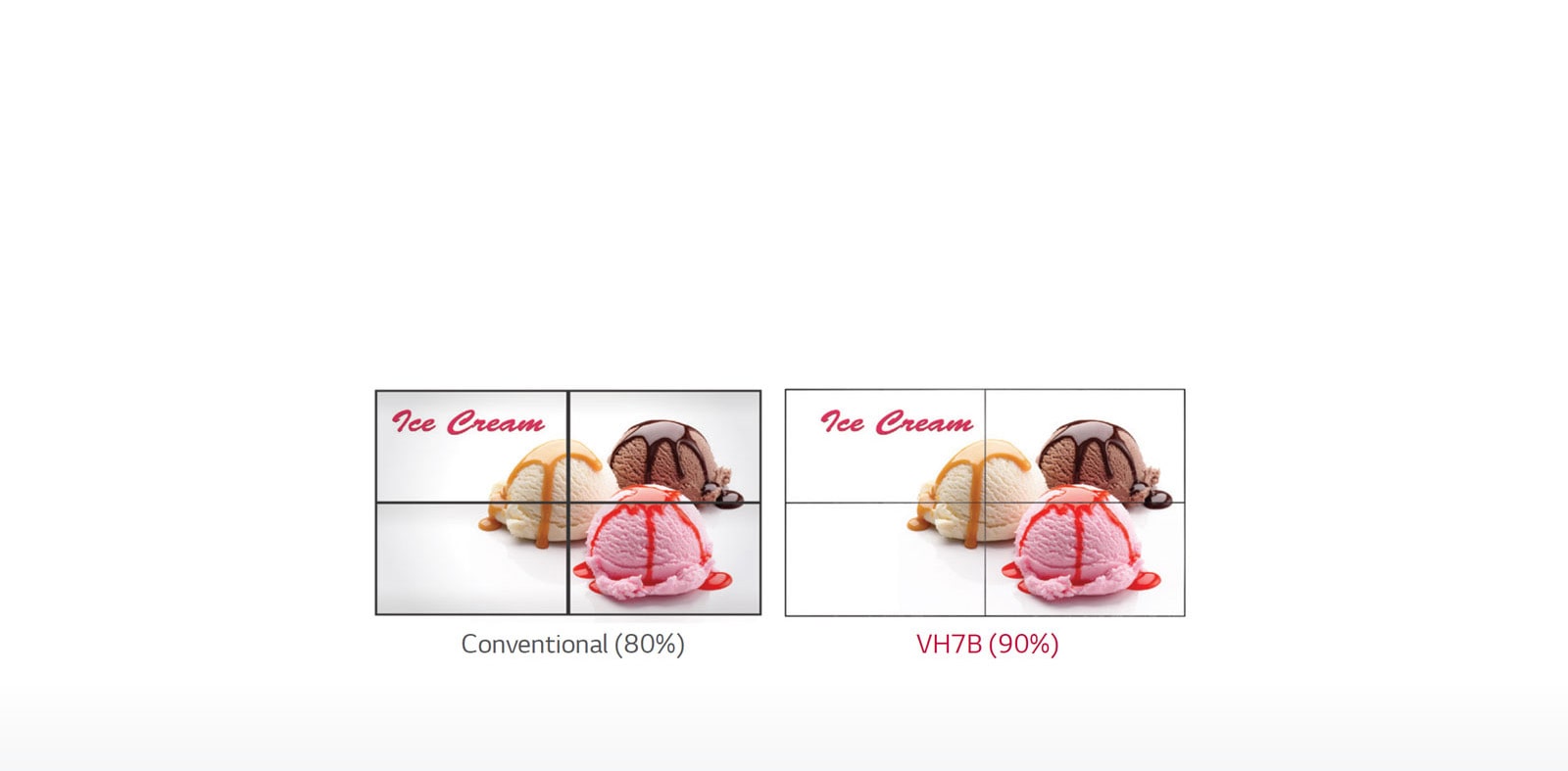

Uniform Brightness
LG’s LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new VH7B generates high visibility and a consistent brightness across the whole screen.
Clear Viewing Angle
The VH7B ensures clear picture quality even when installed in stacks of more than four. This is very favorable for the quantity of video walls installed in large spaces.

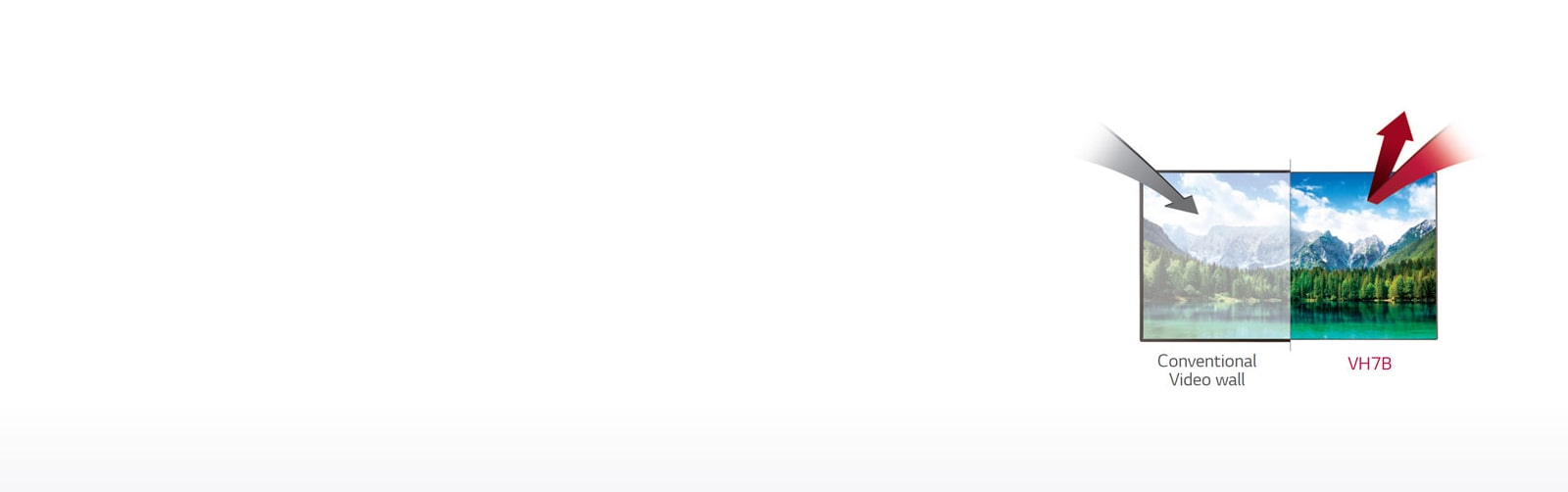

Shine Out
The VH7B is the perfect fi t for window displays because it
refl ects sunlight for better visibility and a clearer image than conventional panels.

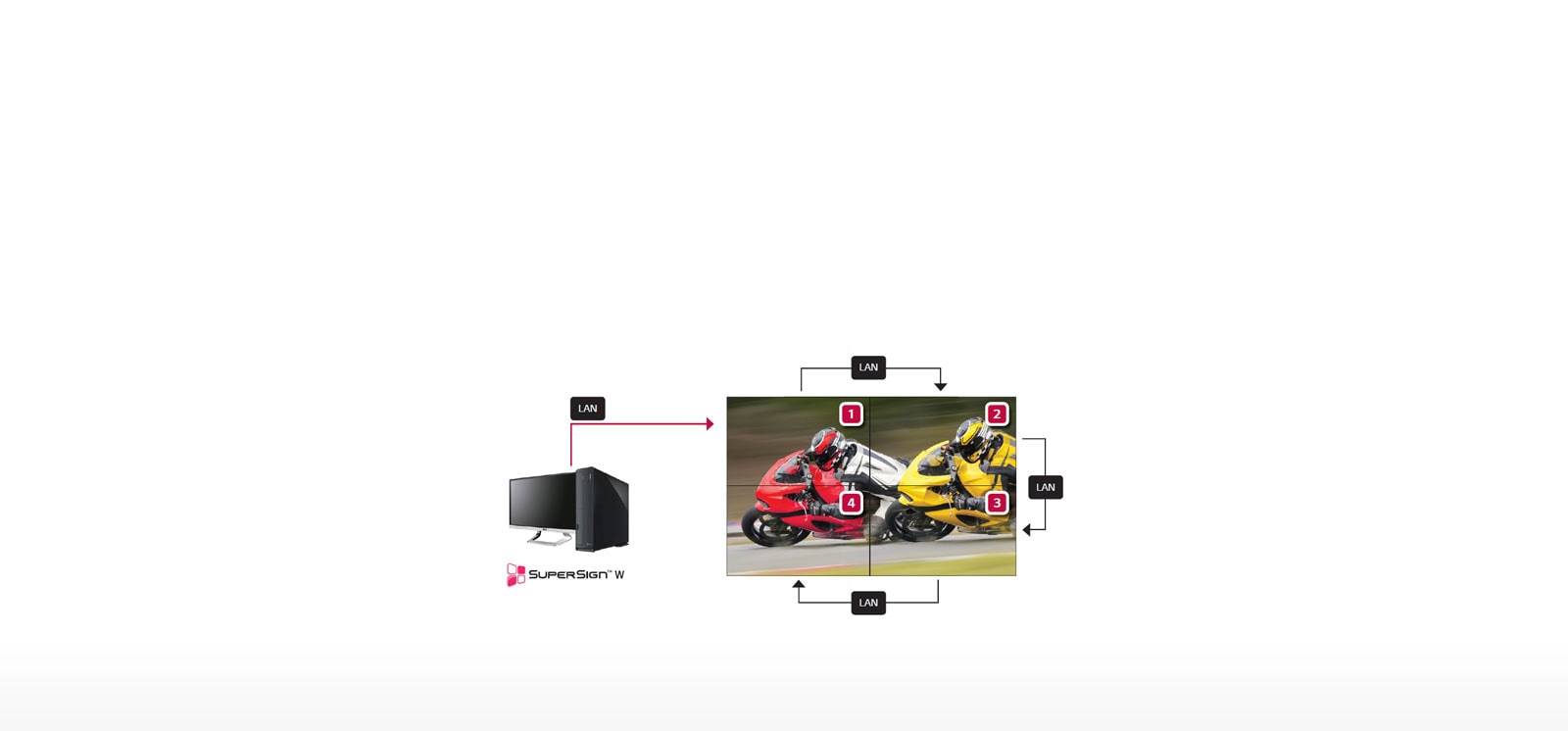

LAN Daisy Chain Performance
A LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware.
LG C-Display
Customer AppDownload and experience the Video Wall Configurator as a simulation tool for your Video Wall installation.
Panel Screen Size 55" Resolution 1,920 x 1,080 (FHD) Brightness 700cd/m² Connectivity - Intput HDMI Yes (1), HDMI /HDCP2.2 DP Yes (1), DP1.2a/HDCP1.3 DVI-D Yes (1), HDCP2.2 Analog (RGB) Yes (1) Audio In Yes (1) External Control (RS232C IN) Yes (1) External Control (RJ45) Yes (1) External Control (IR receiver) Yes (1) External Control (Pixel Sensor) - USB (USB3.0/USB2.0) Yes (1) / Yes (1) SD Card (SDHC/Full Size) - Connectivity - Output DP Out Yes (1), DP1.2a/HDCP1.3 Audio Out Yes (1) Externel Speaker Out - External Control (RS232C OUT) Yes (1) External Control (RJ45) Yes (1) Physical Specification Bezel Width (B to B) 0.9 (top/bottom/left/right even bezel) mm (1.8mm) * B to B : Panel Bezel + Panel Bezel Monitor Dimension (W x H x D) 1,211.4mm X 682.2mm X 86.5mm Weight (Head) 18.6kg VESA™ Standard Mount Interface 600mm x 400mm Media Player Compatibility OPS type compatible Yes External Media player Attatchable Yes (MP500/MP700) Software Compatibility SuperSign-w lite Yes SuperSign-c Yes Accessory Basic Remote Controller, Power cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Guide Bracket, Screw Optional Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSA), HD Base T (EB-B100) General Region Global Business Resources
LeafletDimensionManual
Signage Information Rev01.pdf - Japanese 55VH7B Owners Manual REV00 1.pdf
- Israel webOS 2 0 Installation manual REV01.pdf
- Hebrew webOS 2 0 User guide REV01.pdf
- Japan webOS 2 0 User guide REV01.pdf
WorldWide_55VH7B_55VM5B_Owners_manual_REV02.zip - N_America_VH7B,VM5B_Full Manual_REV02.zip
- WorldWide_webOS2_0_Installation manual_REV08.zip
- WorldWide_webOS2_0_User Guide_REV07.zip
